Must-Notice Safety Issues Of Using Pharmaceuticals Metal Separators

March 16,2021

Medicine is significant for people who are sick. If the medicine contains metal particles, it may cause other pathologies in the patient. The medical metal separator used in the pharmaceutical industry can safely and effectively separate metal impurities or particles from the drug for the pharmaceutical industry.



Metal Separator

The metal separator is mainly composed of a detection part and a rejection part. It uses the principle of electromagnetic induction to detect metals. All metals including iron and non-iron have high detection sensitivity. The entry of ferromagnetic metals into the detection area will affect the distribution of magnetic lines of force in the detection area, which in turn affects the fixed-range magnetic field. Non-ferromagnetic metals entering the detection area will produce eddy current effects and change the magnetic field distribution in the detection area. When the metal impurities pass, the product alarm signal will be sent to the rejecting part, and the rejecting part will swing left and right to reject the products containing metal impurities, so as to realize the complete separation of the metal impurities.

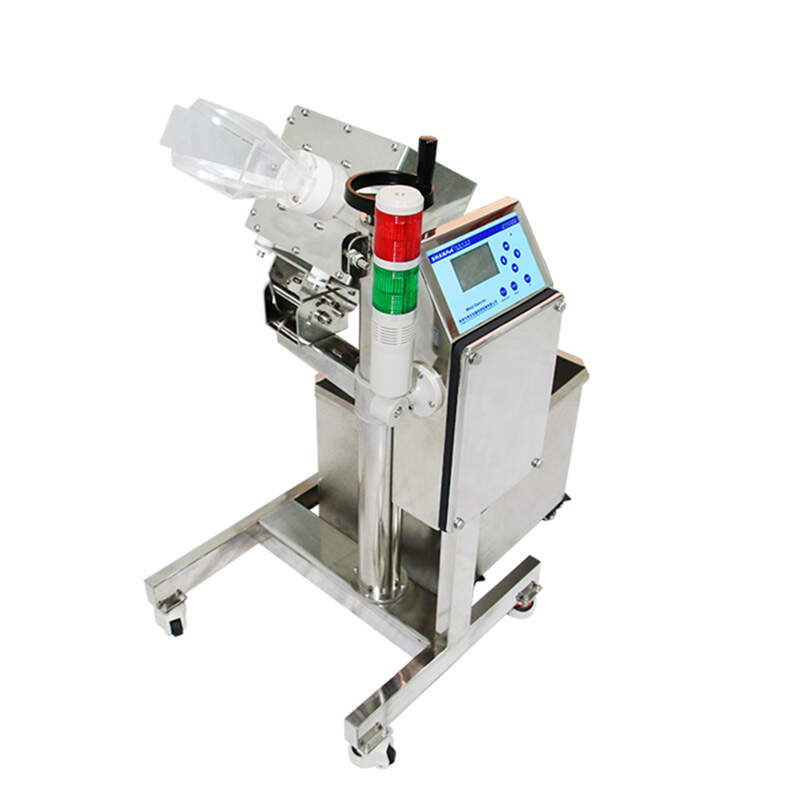

 Pharmaceuticals Metal Separators



Safety Issues In The Use Of Pharmaceuticals Metal Separators

1. The metal separator for pharmaceuticals should avoid being surrounded by steam, dust or similar substances, because this may affect the insulation of PVC wires.



2. When the pharmaceuticals metal separator is working, the case cover and the electric box door should be closed to avoid the danger of injury and the pollution of the machine, and to extend the service life. All warning signs posted on the machine must be clearly visible and cannot be removed for any reason.



3. The inlet should be connected to the feeding hopper or pipeline, the inlet and outlet should be connected by a pipe with a diameter of 70mm, and the outlet pipe should be 90cm long.



4. If repairing electrical and electronic components or repairing pneumatic components, be sure to cut off the power and air supply, and only allow trained technicians to operate and repair the machine. Unauthorized modifications or repairs are not allowed.



5. Potential danger. After the electric switch is turned off, the electric box may be in a live state because the external power supply is still connected. In addition, due to the existence of the compressed air cylinder, the opgw joint box  pneumatic components will still operate after the air source is cut off.



6. Operation not allowed: Operation outside the scope of 1 is not allowed, operation outside the range of technical parameters is not allowed, and it is not allowed to detect corrosive and explosive materials.

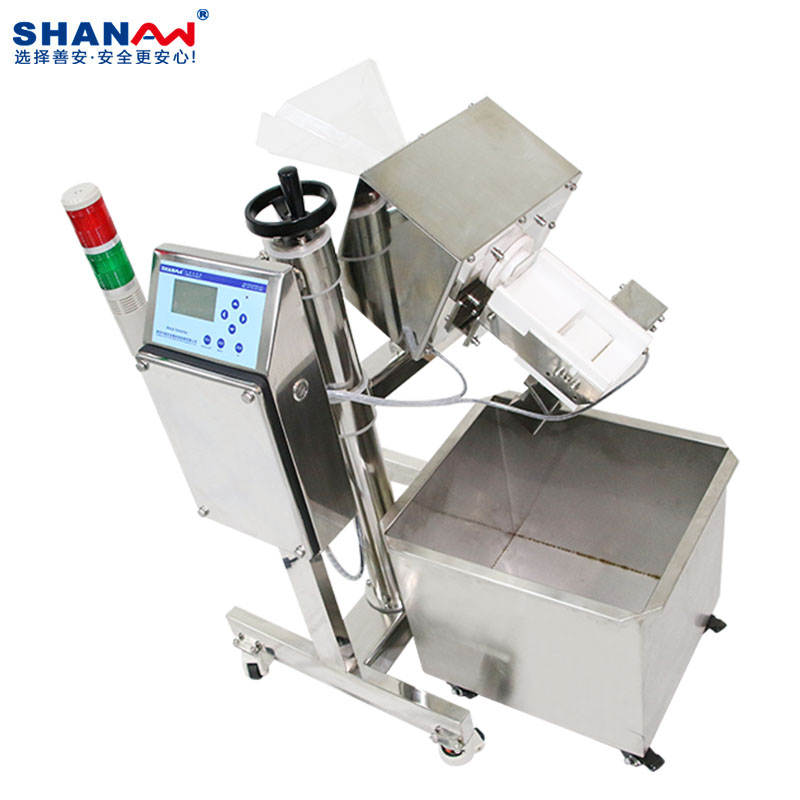

 Pharmaceuticals Metal Separators
