High sensitivity clothing needle detector for clothing, shoes, hats, luggage, toys, children's clothes, underwear, bedding
Quick Details
Product Code:
SA-630K
OEM:
Available
Sample:
Refuse
Port:
Shen Zhen
Payment:
Western Union,T/T
Place of Origin:
China
Supply Ability:
50 unit per month
Quick Details
  • Product number
    SA-630k
  • Net weight
    About 180KG
  • Detection sensitivity
    ≥FeΦ0.8mm,1.0mm,1.2mm,1.5mm
  • Detection height
    120mm,150mm,200mm,250mm
  • Detection width
    600mm or customized
  • Power
    100W
  • Insuction adjustment
    0-10 level touch button adjustment
  • Power supply
    AC220V 50-60HZ
  • Detection method
    Magnetic field induction,digital circuit processing
  • Equipment size
    1650*1050*900
  • Alarm method
    Sound and light alarm exit after shutdown and start automatically
OK
Shipping fee
Shipping fee
Inquiry Basket
Contact Supplier

Working principle of SA-630K conveyor type needle detector

when a ferromagnetic object enters the detection channel, the upper and lower probes generate signals through strong magnetic field induction, when the goods passing through the needle detector have broken needles or contain ferrous metals and the like When the needle detector is not allowed to pass, the needle detector will automatically alarm when it detects ferrous metals.

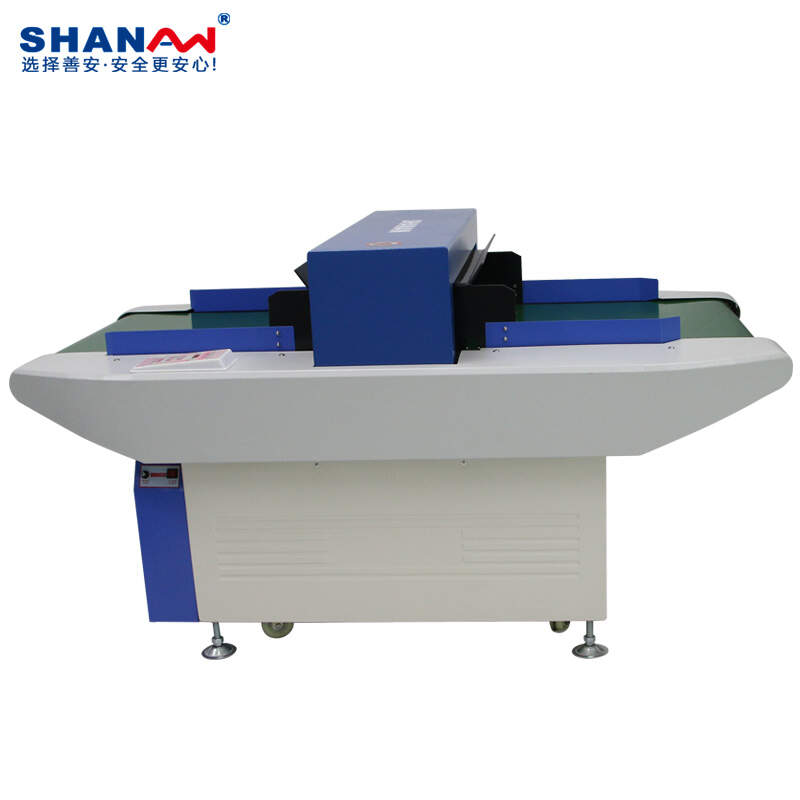

Conveyor type needle detector

1 Using American silicon's high-performance computer processing chip with a calculation speed of 25 million times per second and a data conversion accuracy of 2.4 parts per million. Taiwan's FOTEK (Yangming) sensor and Habasit conveyor belt are selected.

2 Fully digital design of patented technology, large-scale high-precision SMT chip circuit board

3 Using the fastest memory chip, high-speed storage of various operating modes, with the function of computer acceptance of test results

4 The special induction design of the probe part greatly improves the sensitivity and anti-interference ability of the instrument, and breaks the restriction of environmental influence (electric fan, sewing machine, etc.)

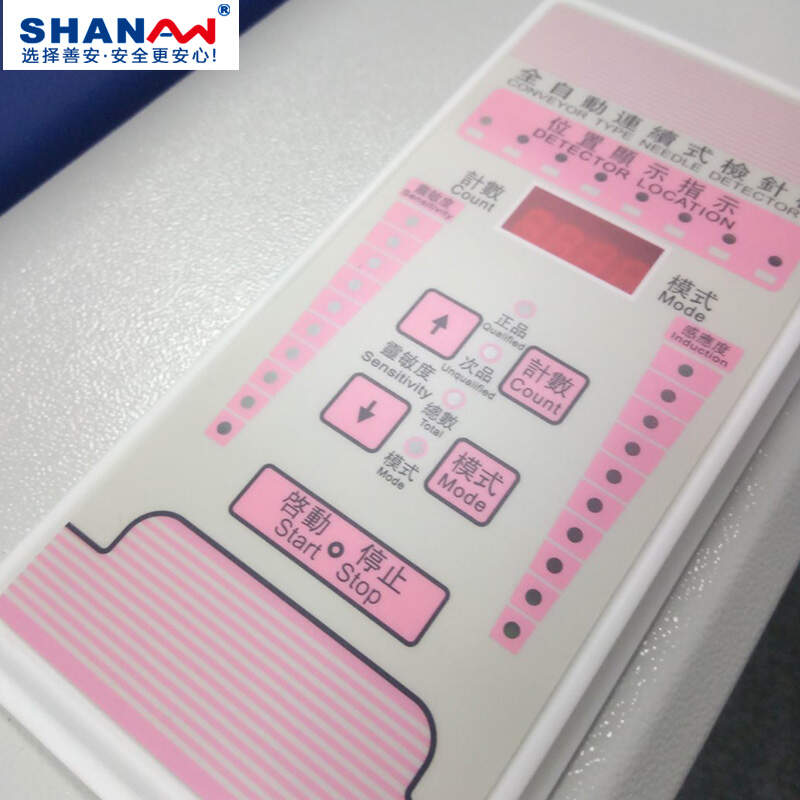

5 Innovative design; sensitivity flag setting, 100-level sensitivity digital control, both a very wide detection sensitivity range and fine adjustment

6 100-level sensor display shows the environment and the iron content of the detected object. Accurate broken needle position display

7 Innovatively designed multiple detection modes, such as high sensitivity mode, uniform mode, colored pigments, and detection of thin materials (paved materials), thick materials (finished products) and other functions

8 Accurate counting is equipped with micro thermal silent printer, working data is easy to archive

9 Set up three-level safety lock, no lock, low-level security and high-level security, built-in high-precision clock, reliable management

10 With light control automatic alarm, detection of broken needle, sound and light, dual simultaneous alarm, the conveyor belt stops and automatically returns

11 CE-certified brand-name high-reliability switching power supply, which can effectively resist interference on the power line, has an environmentally friendly automatic switch mode, and an intelligent operating switch design.

SA-630K Needle DetectorSA-630K Needle Detector

It is generally used to detect hidden iron, needles and nails in shoes, clothing, hats, toys, textiles, pharmaceutical products, clothing, sports shoes, plush toys and other commodities. Features: This type of needle detector has high sensitivity and good stability.

Toys, clothing, shoemaking, chemical industry, leather, knitting and other industries that need to detect ferromagnetic metal impurities are used to detect ferromagnetic non-ferrous metals such as broken needles and iron wires that are mixed or lost in raw materials or products. Very strict requirements Metal detection products are particularly suitable, and can accurately identify the location of broken needles (metal impurities). Improve product safety factor and reduce harm.

 It will automatically alarm when the broken needle is detected, and return to match for use on the production line. Before the product is packaged, it must be detected by needle detector/needle detector/conveyor type needle detector, desktop needle detector.
