Multi-stage checkweigher for industrial products, aquatic products, poultry, meat
Quick Details
Product Code：
SACW-1200DJ
OEM：
Available
Sample:
Available
Port:
Shenzhen
Payment:
Western Union,T/T
Place of Origin：
China
Supply Ability：
50 unit per month
Quick Details
Shipping fee
Shipping fee

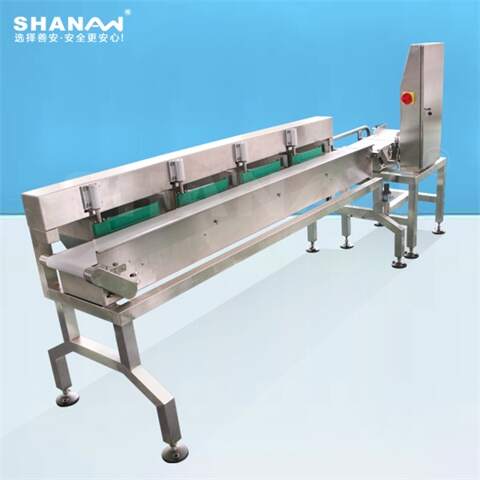

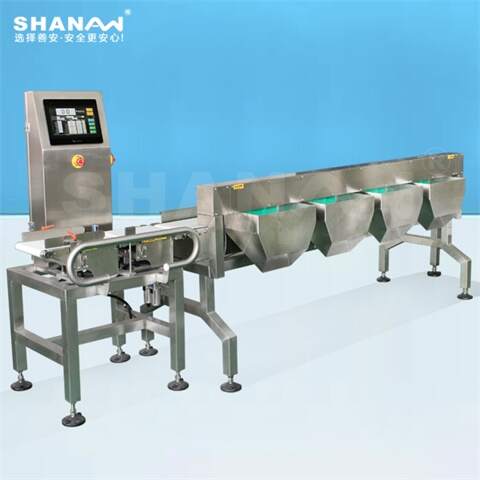

Multi-stage checkweigher for industrial products, poultry, meat
| Model: SACW-1200DJ (multi-stage sorting) | Weighing range: 10～1200g |
|---|---|
| The highest sorting accuracy: ± 0.3g | Belt speed: MAX.118 m/min |
| Throughput: MAX.60-100 times/min | Operating height: 800mm±50mm (adjustable, customizable) |
| Belt size: 400mm*220mm (length * width) | Resolution: 0. 1g |
| The height of the conveyor belt from the ground: 650～750mm | Operating temperature: -5～40℃ (ambient temperature in Celsius) |
| Humidity: no condensation | Display: 10-inch color touch screen |
| Standard interface: RS232.TCP/IP(Optional),StaticI/O(2*I,8*O). RS485/422(Optional) | Protection level: IP33/IP54/IP65 |
| Power supply voltage: AC220V ±10% 50Hz/60Hz | Mechanism material: stainless steel 304 polished |
| Sorting device: push rod type, blowing type, lever type optional | Combined machines: printers, inkjet printers, labeling machines, metal detectors, etc. |
| ★Remarks: The accuracy of the speedometer is slightly different depending on the size of the product being tested and the working environment in which the equipment is running. | |
1 Simple operation: using Weilun color man-machine interface, fully intelligent and humanized design;
2 Report function: built-in report statistics, the report can be generated in EXCEL format, can automatically generate a variety of real-time data reports, the U disk can store statistical data for more than 1 year, and support the production status at any time;
3 Strong versatility: The standardized structure of the whole machine and the standardized human-machine interface can complete the weighing of various materials;
4 Interface function: standard interface is reserved, data is easy to manage, and it can communicate with PC and other smart devices;
5 Classification of aquatic products: all kinds of seafood products, fish, shrimps, crabs, sea cucumbers, abalones....... Products are classified by weight range.
6 Classification of poultry and meat products: chicken legs, chicken wings, chicken feet, duck legs, duck wings, offal products, etc. are divided into different weight ranges.
7 Industrial product weight classification: motor rotor, synthetic diamond, auto parts and other products weight classification.
8 High-speed and high-precision: high-precision digital sensors are used, with fast sampling speed and high precision;
9 Adjustable speed: the motor is controlled by frequency conversion, and the speed can be adjusted as required;
10 Material of the whole machine: The whole frame is made of 304 stainless steel, in line with HACCP, GMP, FDA, CAS and other standards
11 Operation mode: friendly touch screen operation or man-machine interface operation is easy to learn.
Industrial product weight classification: motor rotor, synthetic diamond, auto parts and other product weight classification
Classification of aquatic products: all kinds of seafood products, fish, shrimps, crabs, sea cucumbers, abalones...Classify products by weight range.
Poultry and meat product classification: chicken legs, chicken wings, chicken feet, duck legs, duck wings, offal products, etc. are divided into different weight ranges.
| Shanan Multi-stage checkweigher for industrial products, poultry, meat.is R&D and production of detectors,specializing in Industrial Metal Detector instruments,provide public security inspections. Tailor-made solutions for customers.to protect customer brand image and improve customer productivity and production quality. |
|---|
