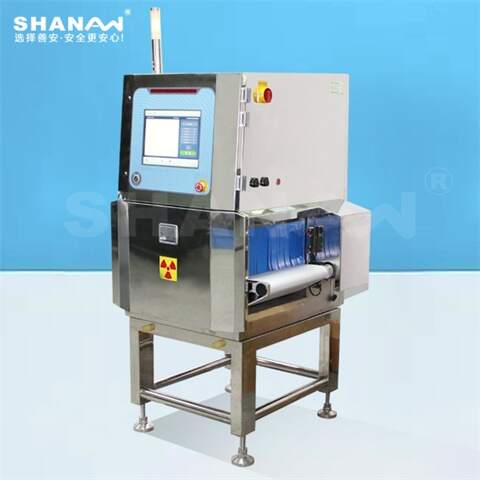

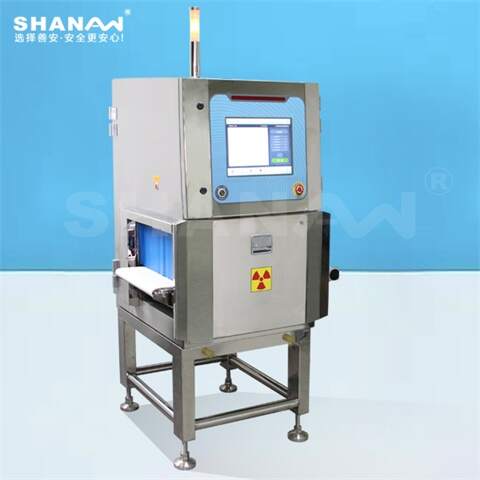

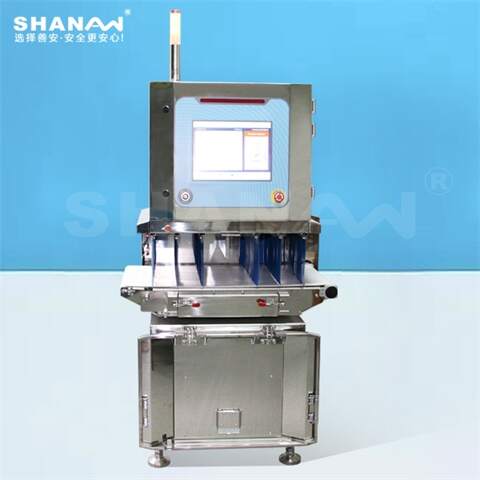

X-ray inspection machine for food, medicine, chemical industry
X-ray inspection machine for food, medicine, chemical industry manufacturer factory
In plastic production, a small amount of metal contaminants will quickly increase costs. Metal fragments not only reduce the quality of plastics, but also damage processing machinery, leading to unplanned shutdowns and equipment failures. In many cases, tiny metal fragments (such as mud in a pipeline) can stop production. Our metal detection system provides a remedy.
Sensitivity is a measure of the ability of a metal detector to detect metal contaminants of a specific type and size. The better the sensitivity of the metal detector, the smaller the irregularly shaped metal fragments it can detect. Performance is usually expressed by the diameter of a test ball made of a specific type of metal, such as iron, non-ferrous metals, aluminum or stainless steel. For example, a highly sensitive detector can detect 0.6 mm iron balls. The impact of ball size is small, but real-life metal contaminants may be even greater. Therefore, a small change in the size of the detection ball will cause a large change in the size of metal contaminants that can be found.
|Best detection accuracy||Lead: φ0.2mm, stainless steel ball: φ0.4mm, ceramic ball: φ0.8mm, bone: φ0.8mm, glass: φ1.0mm|
|Detection size parameters||Maximum detection width||250mm|
|Maximum detection height||175mm|
|Conveyor belt height||850±30mm|
|Detector type||Linear scan|
|Monitor||15 inch LCD touch screen|
|Operation method||Touch screen operation|
|Software||Intellisense X-ray Inspection System|
|Support data interface||USB|
|Parameter settings||Self-learning/manual adjustment|
|Conveyor belt material||PU belt|

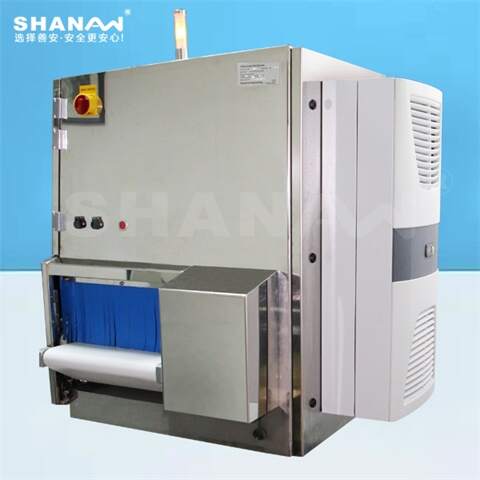

|Air conditioning||Internal circulation industrial air conditioner, automatic temperature control|

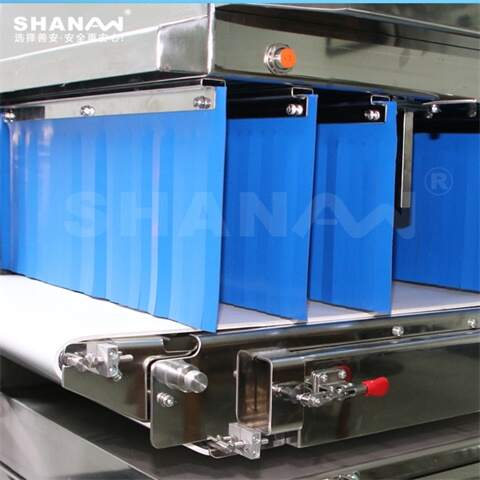

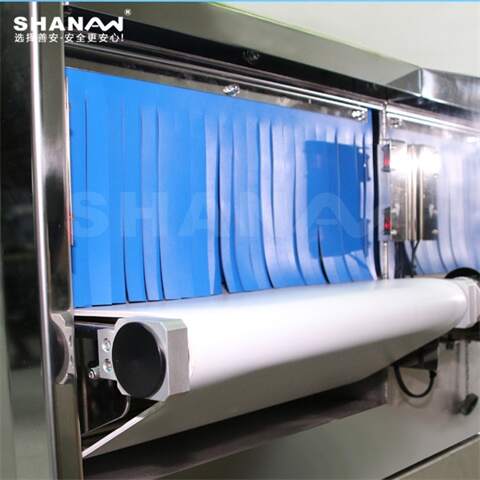

|Protection method||Removable protective curtain|
|Cleaning method||Tool-free disassembly of the conveyor belt for easy cleaning|
|Power supply||AC220/230V, 50/60Hz|
|Environmental requirements||Temperature: 5-35℃/ Humidity: 30-85%RH (no condensation)|
|Machine size||800*860*1580mm (length*width*height)|
- The SA-X3 metal detector has a series of different technologies to suit the plastic, rubber and chemical industrial products to be inspected. It can detect metal, non-metal and other dense foreign objects, such as: metal, glass, stone, bone, ceramic, hard rubber, hard plastic, etc.; improve production reliability, reduce downtime, and ensure high-quality products.
- High-speed detection: The world's leading computing and processing capabilities, with a detection speed of up to 120 m/min, and an ultra-high frequency that can provide excellent sensitivity to detect more and smaller metal blocks. In the challenging applications of hot, wet, cold or cooling products, with multiple simultaneous frequencies and product signal suppression technology, its efficiency is much higher.
- Excellent detection accuracy can ensure product quality and protect user brand reputation. Choose a stable and reliable metal detector to provide higher sensitivity. Using SA-X3 metal detector can reduce the scrap rate, prevent complaints and improve customer satisfaction.
- Abundant extended functions: multi-point omission detection, defect detection (product defect, packaging defect), shielding section detection, liquid level detection, high-speed rejection detection, remote control, integrated real-time management and other functions.
- Easy to operate: 15-inch touch screen operation, self-learning function, intuitive and simple operation experience. Automatically save the detection pictures to facilitate user tracking.
- Green design concept: All accessories meet food requirements, and radiation leakage meets US FDA and EU CE standards.
It is widely used in the detection of metal and non-metal foreign bodies in the food, medicine, and chemical industries, especially products packaged in aluminum foil or metal casing. Not only can sensitively identify all kinds of foreign objects in the product, such as metal, bone, glass, ceramic, stone, hard rubber, hard plastic, etc., but also provide excellent product integrity testing to identify product defects and defects.
SA-X3 metal detectors are mostly suitable for
Plastic metal detection
Rubber metal detection
Rubber metal detection
Food packaging, aluminum packaging, aluminum foil paper tray packaging, bulk product detection, etc.
Our products are modular, and our metal detectors can be adapted to all the requirements of various manufacturing processes. We provide standardized solutions for all process steps:
